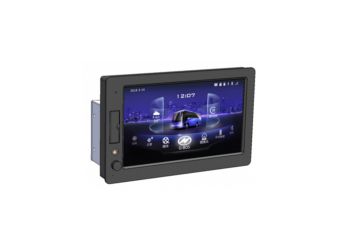

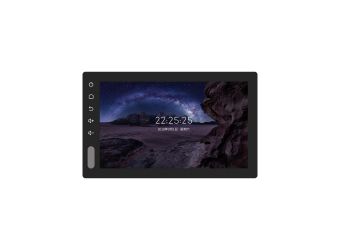

10.1" IVI
This product integrates T-box and Android screen display terminal, based on CORTEX A53 quad-core low-power processor (clocked at 2GHZ), equipped with leading intelligent operating system Android V9.0, an on-board intelligent display terminal that integrates audio and video playback, radio, Bluetooth calls, reversing images and other functions; at the same time, it has 4G networking, WiFi networking, tire pressure monitoring, auxiliary touch control, vehicle doctor and other rich extended functions, support connection with the TBOX terminal, access to the Internet of Vehicles, and realize various functions such as vehicle information monitoring.
Consult immediately
Functional characteristics

    Audio-visual entertainment applications: radio, USB movies, USB music, Bluetooth music, picture browsing, mobile phone screen projection [Yilian], etc.

    Smart networking: WiFi, BlueTooth, remote upgrade services, etc.

    Vehicle safety applications: reversing image, fast reversing, air conditioning control, positioning information, multi-function steering wheel

Application scenario

    This product is currently mainly used in high-end models heavy trucks and tractors.

Main parameterOperating systemAndroid 9.0
CPUQuad-Cortex-A53@2.0GHz
DDR2G
EMMC16G
DisplayScreen size10''
Resolution1024*600
Touch screenCapacitive multi-touch screen
Operating environmentWorking temperature-30℃ ~ +70℃
Storage temperature-40℃ ~ +85℃
InterfaceVideo input4x AHD compatible with CVBS
Audio input2x mic
USB1x,USB 2.0
FunctionBTSupport Bluetooth 4.0 and above
WIFISupport 2.4G/5GHz
CAN4x CAN
Video surveillanceAHD compatible with CVBS
Sound processingSupport
PowerWorking voltage18V~32V
