Functional characteristics
Equipped with the Allwinner AC8257 and Android operating system
Quad-core Cortex A53, with a main frequency of 2.0 GHz

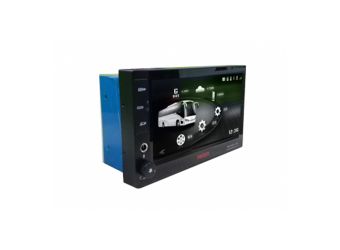

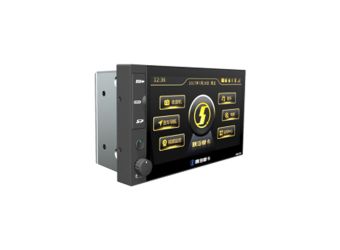

Embedded installation with an integrated screen design
Includes RS232, USB, and other communication interfaces for easy expansion
Supports online and offline truck navigation
Supports Wi-Fi connectivity
Supports Bluetooth (Bluetooth music, Bluetooth phone calls)
Supports standard plug-in TF cards (for offline map packages)
Includes radio, music, movies, and wallpaper applications
Supports online updates
Includes four-way/reverse parking, multi-function steering wheel, dashcam functionality, smart connectivity, accessory service stations, and a guide to vehicle use
Application scenario
| Main parameter | Operating system | Android 9.0 |
| CPU | Quad-Cortex-A53@2.0GHz | |
| DDR | 1G | |
| EMMC | 16G | |
| Display | Screen size | 7'' |
| Resolution | 1024*600 | |
| Touch screen | Capacitive multi-touch screen | |
| Operating environment | Working temperature | -20℃ ~ +70℃ |
| Storage temperature | -40℃ ~ +80℃ | |
| Interface | Video input | 1x，AHD |
| USB | 1x； USB2.0；Front panel; support USB fast charging | |
| Audio input | 1x mic，built-in mic | |
| Function | BT | Support |
| WiFi | Support | |
| CAN | 1x | |
| RS232 | 2x，1x reserved | |
| Supports online and offline truck navigation | ||
| Supports standard plug-in TF cards (for offline map packages) | ||
| Includes radio, music, movies, and wallpaper applications | ||
| Supports online update | ||
| Includes four-way/reverse parking, multi-function steering wheel, dashcam functionality, smart connectivity, accessory service stations, and a guide to vehicle use | ||
