Adopts Rockchip hardware platform and Android operating system
Quad-core Cortex A9, clocked at 1.4G Hz
Embedded installation, integrated screen design
Support USB communication interface
Support SD card slot
Support 3-channel camera video input, CVBS format
Support map navigation
Support GPS/BD dual-mode positioning (low power consumption)
This product is currently suitable for truck models such as ”heavy trucks and tractors" to meet the needs of truck drivers.

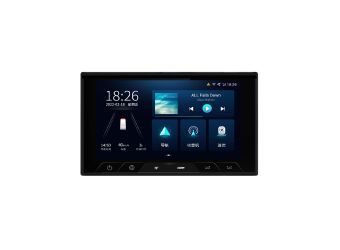

This product is an in-vehicle intelligent display terminal that integrates functions such as movies, music, Bluetooth music, radio, pictures, and mobile phone interconnection. At the same time, some setting functions have been strengthened, such as ADAS switch settings, network diagnostics, video surveillance, etc. Content.
Main parameter | Operating system | Android 7.1 |
CPU | Quad-Cortex-A9@1.4GHz | |
DDR | 1G | |
EMMC | 16G | |
Display | Screen size | 7'' |
Resolution | 800*480 | |
Touch screen | Capacitive multi-touch screen | |
Operating environment | Working temperature | -30℃ ~ +70℃ |
Storage temperature | -40℃ ~ +85℃ | |
Interface | RS-232 | 1x |
Video input | 3x CVBS | |
USB | 1x | |
Function | BT | Support |
CAN | 1x CAN | |
Video surveillance | 3x | |
Sound processing | Support | |
Extended function | Connect to the multi-function steering wheel | Support |
Connect to radar alarm | Support | |
Connect the horn | Support, 2x power amplifier, support connection of 4 speakers | |
Power | Working voltage | 10.8~32V |
Structure | Weight | 1.8kg |
Size | 188mm*112mm*63mm |
